Polaris RZR Turbo / S Multi-Chambered Catch Can | Diamond Performance

Diamond Performance Multi-Chambered Catch Can for Polaris RZR Turbo / S

Multi-Chambered design to handle high boost Applications

  Designed for off-road Use

Why do you need a catch can?

The factory crank ventilation system was designed to recirculate back into the Intake system due to emissions. We have found that after you turn up the boost or even as your motor starts to get some miles on it, it can start to increase blow by and push oil vapors though your intake system damaging sensors and lowering octane levels. This is drastically increased when running E85 Tunes. Lower Octane levels can cause pre-detonation and damage your motor. A catch can bypasses they factory system and separates the bad fumes while collecting them in a container and decreasing crank pressure.

Why ours vs the others on the market?

We spent a few years developing an oil catch can that provided the proper vent capacity as well as properly separate the oil and water vapors being vented.

Our second goal was to provide one that didn't shoot oil everywhere, we can proudly say we solved that issue with our Multi-Chambered Baffled design.

Lastly we did not design ours to recirculate the oil back into the motor and that was for a specific reason. The amount of fuel and water contaminates that get vented though the crank breather should not be recirculated back into the oil system.

The main complaint we have when customers have installed a generic brand "Universal" catch can is, well... Oil shoots everywhere...  While most generic catch cans on the market do what they are supposed to by, "bypassing the factory system and catch oil vapors" but they forgot to factor in the Off-road aspect to it. We fixed that, we designed ours to handle high boost and whoop sections.

Features

• 100% Clamp on Design
• Fits under factory bed
• CAD Designed
• Tig-welded aluminum 3" Body
• USA Made in House
• Multi-chambered/Multi Baffled design
• Wide 2" ID Air filter

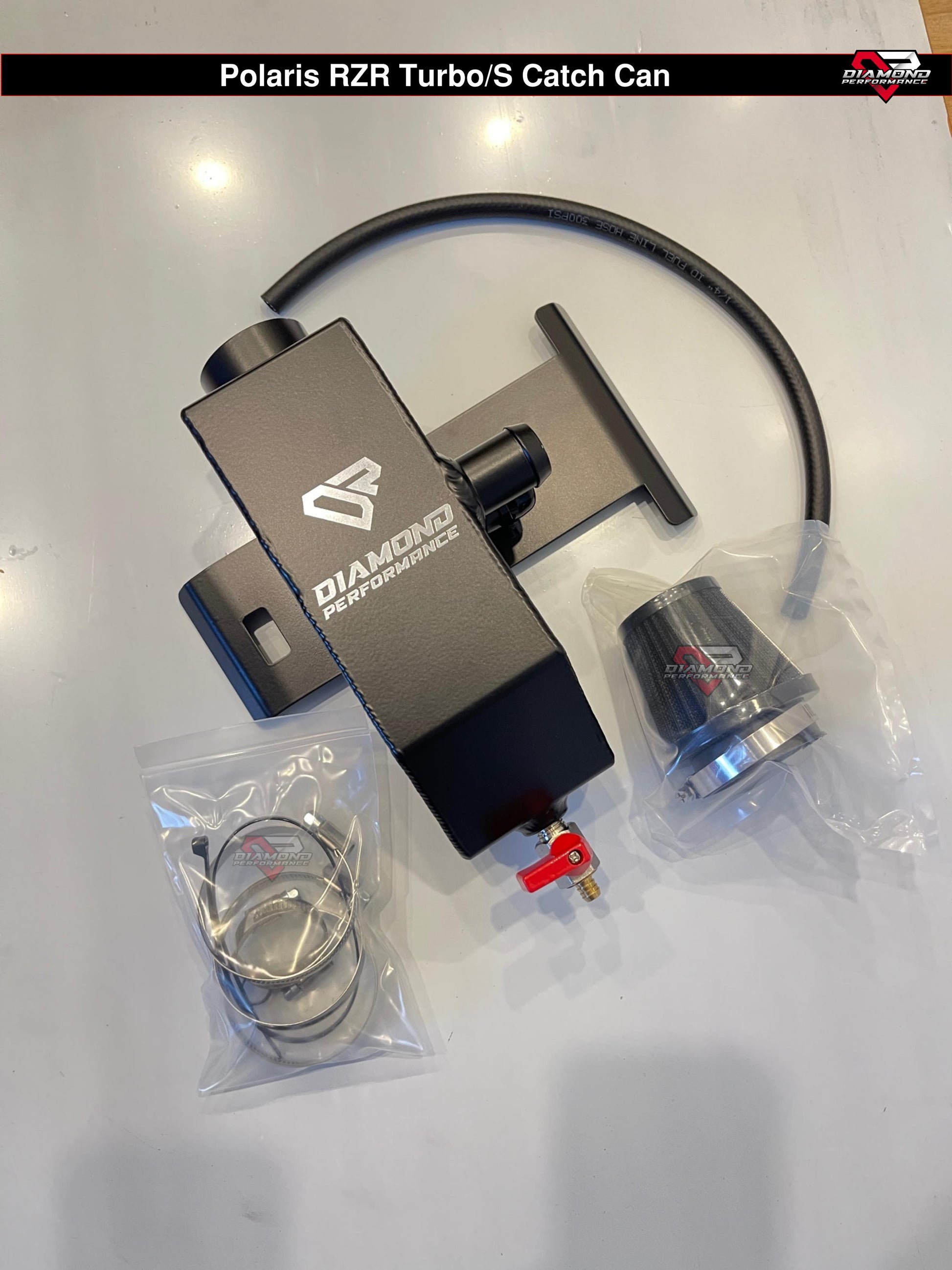

What's in the box

• Catch Can
• Utilizes factory hose
• Hose clamp
• 1" Rubber cap for factory charge tube (No Plug Included for aftermarket charge tubes)
• Large 2" Air filter
• Black Powder coated finish
• 3 Stainless Mounting Hose clamps

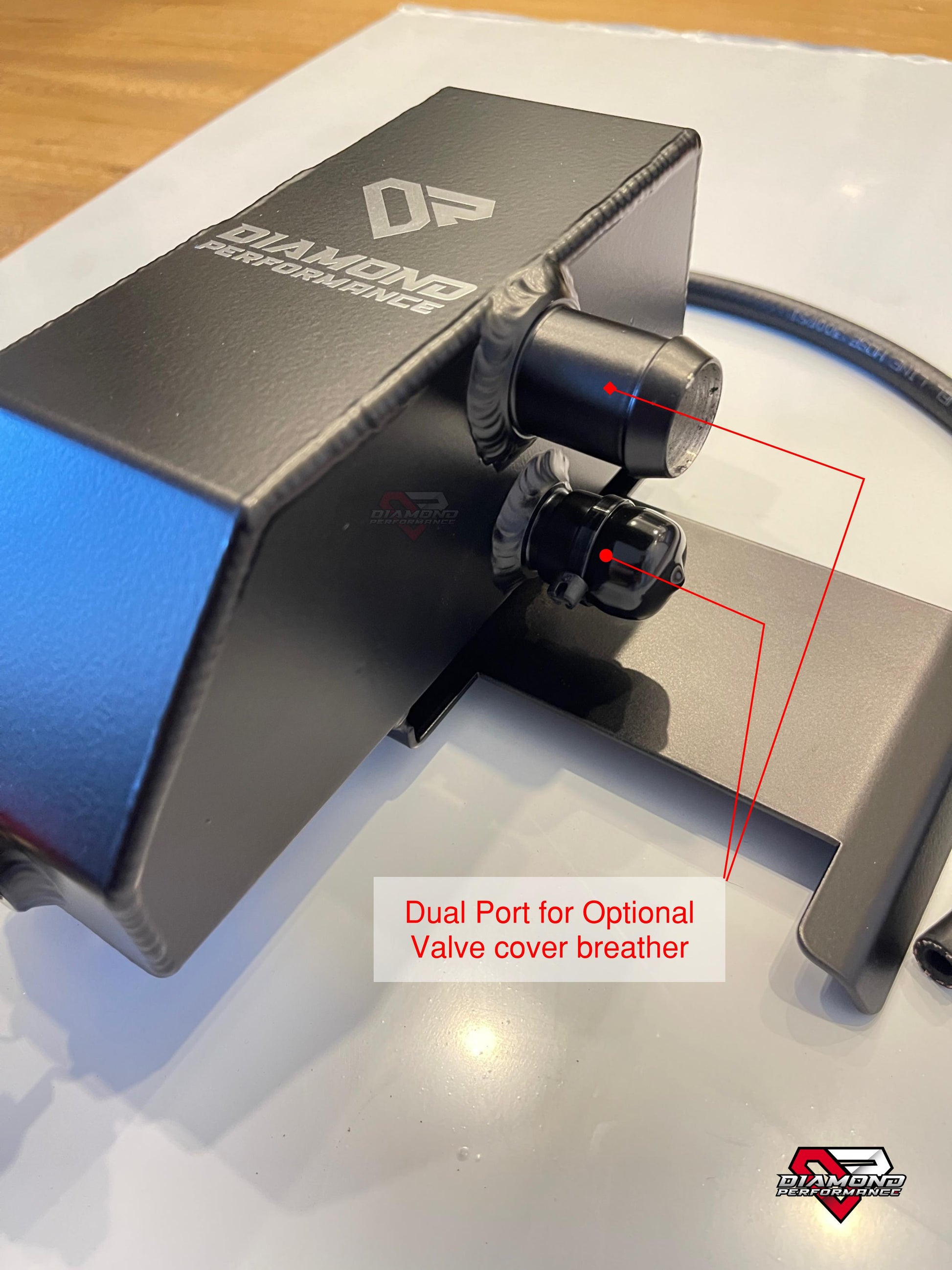

• 1" and 3/4 intake port
